Searches for “CNC vacuum table,” “vacuum pad,” and “vacuum sponge” can refer to different components or table layouts on the same machine. Before preparing a spare-part enquiry, identify how the machine's vacuum workholding is arranged. The table type alone cannot confirm that a particular component will fit.

This guide helps distinguish three general layouts: console tables, channelled grid tables, and nesting tables with a flat spoilboard. Schmalz's woodworking vacuum-clamping references treat console, grid, and flat-table systems as separate application groups. Hardware varies by manufacturer and machine model, so use these as initial identification clues.

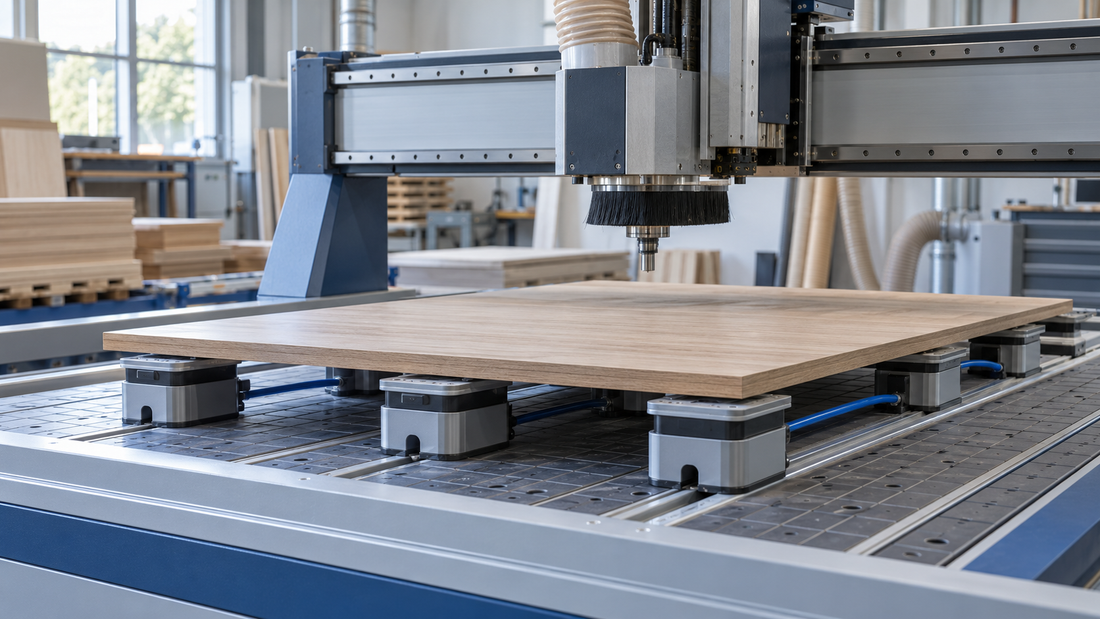

Illustrative diagram only; it does not show a specific machine, catalog SKU, or compatibility claim.

Look at the table surface and support arrangement

Console table: Separate consoles may carry vacuum pads or cups on top. The machine manual may name the manufacturer-specific console layout and accessories.

Grid table: The surface shows a network of channels or a regular grid pattern. Record how supports and adapters locate in the channels, any marked dimensions, and the connection points.

Nesting table: The work surface often appears as a flat spoilboard covering the machining area. Do not infer the board's material or porosity from appearance alone; check the machine documentation.

These labels do not guarantee the same accessories or geometry across manufacturers. Some makers specify accessories that work across particular table layouts; do not generalize that to another system before confirming its brand, series, and part code.

Collect these details before sending a parts enquiry

• Machine manufacturer, full model name, and serial number
• A top-down photo showing the entire table surface
• The position of the support or vacuum element being identified
• The component's top contact face, lower mounting, and any hose/channel interface
• The full code, drawing number, or catalog position on the old component
• Dimensions with units, or clear photos from several angles if you cannot measure it

Illustrative reference checklist; it does not prove part selection or compatibility by itself.

Table type does not replace the part code

Recognizing a grid or nesting surface narrows the search, but it does not verify a maker's code, dimensions, or machine fit. Include table and component photos with the machine identity in the same enquiry. Add a parts-catalogue position if the manufacturer lists one. If the interface, dimensions, or code remain unclear, ask the supplier which manufacturer reference supports its proposed match.

To identify the vacuum component itself, see the CNC vacuum pad, sponge and cup identification guide. Browse the broader CNC spare-parts collection for general categories.

Manufacturer references: Schmalz's vacuum-clamping technology overview and Schmalz's woodworking applications. These explain general system categories; they do not confirm that a specific Belfa product fits your machine.

Frequently asked questions

Are grid and nesting tables the same?
No. In general terms, a grid table has channels in its surface, while a nesting table uses a flat spoilboard. Confirm the exact layout in your machine manual.

Is knowing the table type enough to choose the correct vacuum pad?
No. Verify the machine model, part code, contact face, mounting interface, and dimensions together.

Which photos should I send?
Photograph the machine plate, the full table surface, the component's position, and its mounting side separately. Match the photos to the existing code or catalog position.
