SCM Olimpic Edge Banding Spare Parts

Product guide to SCM Olimpic edge bander parts

The SCM Olimpic collection includes polishing felts, lower chain shoes, upper pressure wheels, an air-table ball and a glue-level sensor, alongside other edge-banding or machine-support parts. Live product titles also include carrier vacuum parts named for other machines such as Turanlar, Nanxing, OTT, IMA, Holzher Sprint, Biesse Akron and Homag Brandt, as well as a Homag polishing felt. The page title does not prove that every listing fits an SCM Olimpic. Check the product name, code and image against the parts catalogue. Olimpic models and options can use different station layouts, conveyors, pressure units and vacuum carriers. The information below describes the listed product families; it does not replace a full model, serial-number and dimension check.

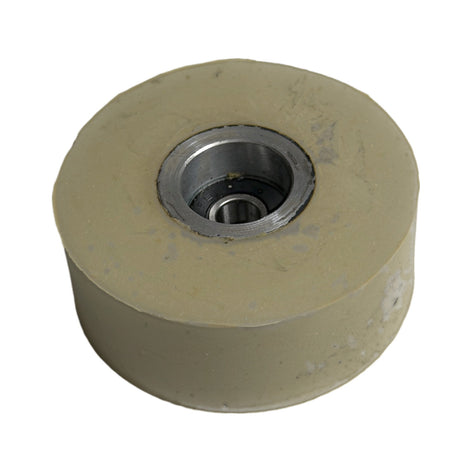

Pressure wheel dimensions and surface

A bearing-mounted metal-hub upper pressure wheel named for SCM may be listed as 65 by 25 by 8 mm; do not confuse it with items that have a different size or hub. Measure outside diameter, working width, shaft or bearing bore, hub material and shoulder profile. A flat or toothed profile and a rubber or other coating can change the axis and contact against the panel. Even where a title says SCM, do not assume that the same shaft and pressure unit are used on every machine version. Read the old part number or find its position in the machine parts catalogue. Record observations such as stiff rotation, surface cracks and width wear, but assess other adjustments and stations before attributing a mark on the panel directly to the wheel.

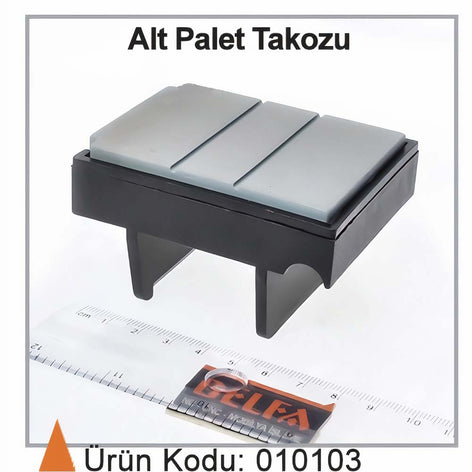

Lower chain shoes and conveying chain

The correct match for an SCM-named lower chain shoe or an 80 by 60 by 45 mm listing depends on its screws, hole location and chain contact as well as its outer size. Confirm the three dimensions in the order shown by the product detail. Record hole centre, fastening, shoe direction on the chain, contact surface and any coating or seal. If a carrier uses repeated shoes, compare sound and worn examples at intervals rather than relying on a single item; wear can vary along the chain. Keep a record of earlier changes to the carrier and the machine serial number. The shoe cannot be selected from the brand name alone. Before installation, measure the new part beside the old one and check chain movement under the maker’s maintenance procedure.

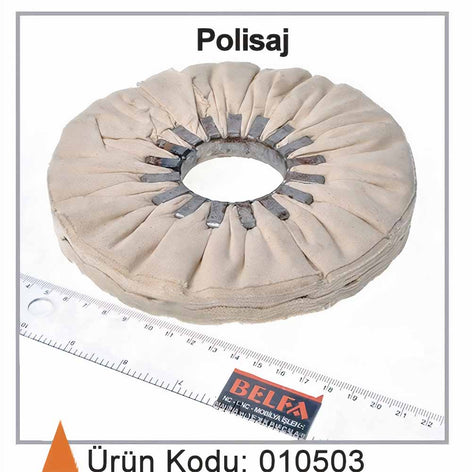

Polishing felt and surface finishing

A polishing felt is a component in the edge-finishing station. A Homag item or another reference such as Biesse Stream listed under a similar name does not automatically fit an SCM Olimpic. Measure and photograph the outer profile, inner hole, thickness, hub or carrier connection and direction of operation. Hardening, tears or a change in diameter can be observed in service; panel gloss, marks or edge cleanliness can also relate to machine settings, band material, line speed and another station. Compare the product image with the drawing for the polishing unit in the machine catalogue. A similar shaft or holder can still differ in clearance or attachment depth. Before installation, compare the new and old felts for orientation and dimensions.

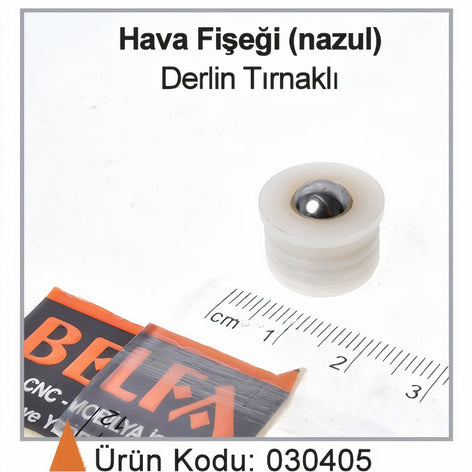

Carrier vacuum and air-table balls

The SCM Olimpic collection may include carrier-vacuum products named for other machine brands and an air-table ball described as SCM. The base, port location, channel and seal surface of a carrier vacuum determine how it attaches to a machine carriage. Do not read a Turanlar or OTT reference in the title as an SCM compatibility statement; look for a verified catalogue entry or OEM code for the table where the product is used. For an air-table ball, check the outside diameter, flange, table opening, body depth and projection above the surface. A metal description does not mean all tables share the same socket. Include photos showing the top and underside of the mounting, any air line and the installed position.

Glue-level sensor and machine configuration

A glue-level sensor may appear under a general name; selection requires the housing, sensing end, mounting length, connection, supply and controller information from its label. Appearing in an Olimpic collection does not show that every glue tank uses the same electrical sensor. Record its maker’s code and connector and compare them with the machine wiring diagram or parts catalogue. Authorized personnel should follow energy-isolation and hot-surface procedures when working around a tank. A level-detection issue may involve the component, cable, connector, control input or adhesive residue. Collection copy is not a test report that distinguishes those causes. Add the alarm, conditions when it occurs and previous maintenance to the service record.

Identify the SCM Olimpic model and part reference

Record the full model and serial information from the machine plate, production period, machine length and installed options. “Olimpic” alone is not sufficient for replacement selection. Copy the OEM number on the part or sensor including all suffixes. For a shoe, measure three outer dimensions and hole spacing; for a wheel, diameter, width and shaft; for a felt, inner and outer diameters and thickness; for a ball, flange and socket; for a vacuum item, port, base and carrier connection. Add the drawing position and any submodel revision from the catalogue. Note any replacement carrier, adapted vacuum hose or non-original felt holder. Take photographs with a scale in frame and use separate names for different stations.

Related collections and a purchasing check

For other options, see [general edge bander parts](/en/collections/kenar-bantlama-parca), [Homag / Brandt](/en/collections/homag-brandt-kenar-bantlama-yedek-parca), [Biesse Akron](/en/collections/biesse-akron-kenar-bantlama-yedek-parca), [Holzher Sprint](/en/collections/holzher-sprint-kenar-bantlama-yedek-parca) and [Edgetech](/en/collections/edgetech-kenar-bantlama-yedek-parca). Similar carrier, wheel or felt names help with comparison; a listing that names another machine does not mean it fits Olimpic. Provide the correct model, serial number, OEM code, drawing position, measurement set and quantity in the purchase request. Call out any other brand in the listing and leave fit confirmation open until verified. Physical mounting and the vacuum, pressure, drive or safety function should all be checked against the maker’s documentation.

Brand references in the Olimpic listings

The SCM Olimpic collection may include a Homag polishing felt and carrier-vacuum listings named for other machine brands, in addition to wheels or a ball described as SCM. Preserve each product reference as written in a purchase note; do not prefix the collection’s SCM name to create a compatibility conclusion that the listing does not make. A felt or wheel can look similar while its shaft or carrier connection and station differ. Port and base dimensions can distinguish vacuum parts. For an alternative, seek a catalogue number and drawing position as evidence independent of the product photo. Save the source that resolves another machine reference in the maintenance file.
